Foutz Motorsports 5-link Coil Over Rear Suspension Kit for Gen 2 Raptor

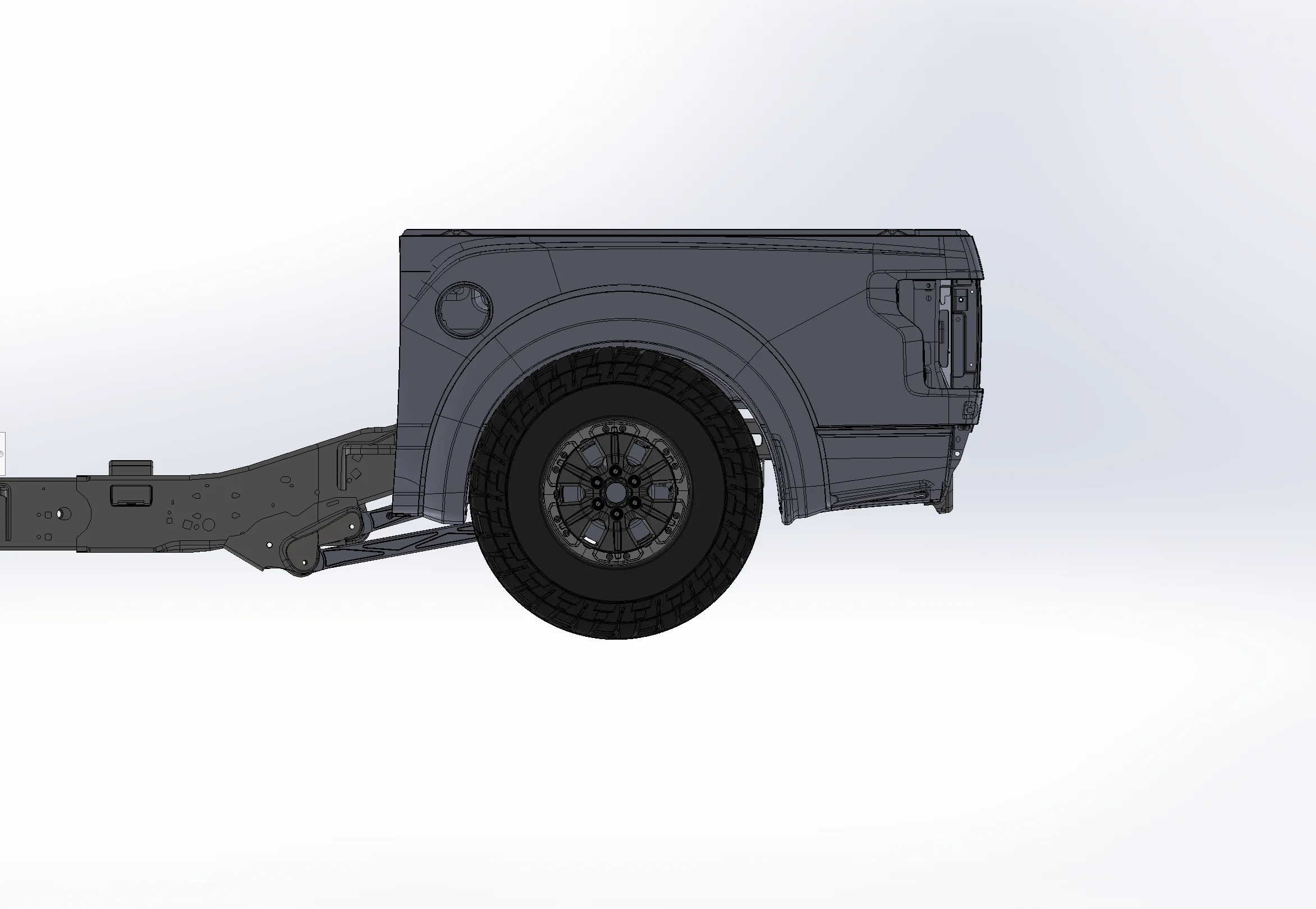

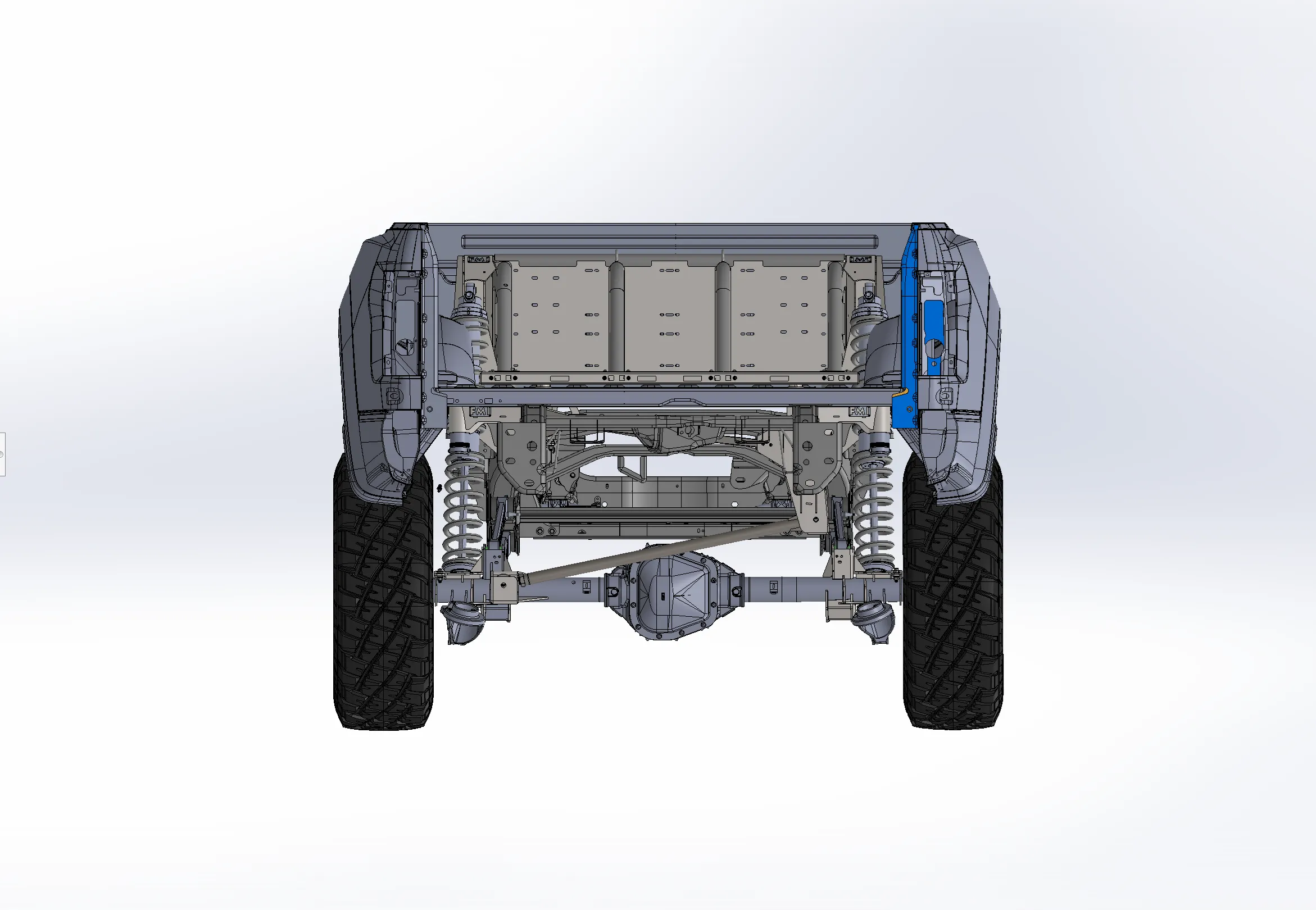

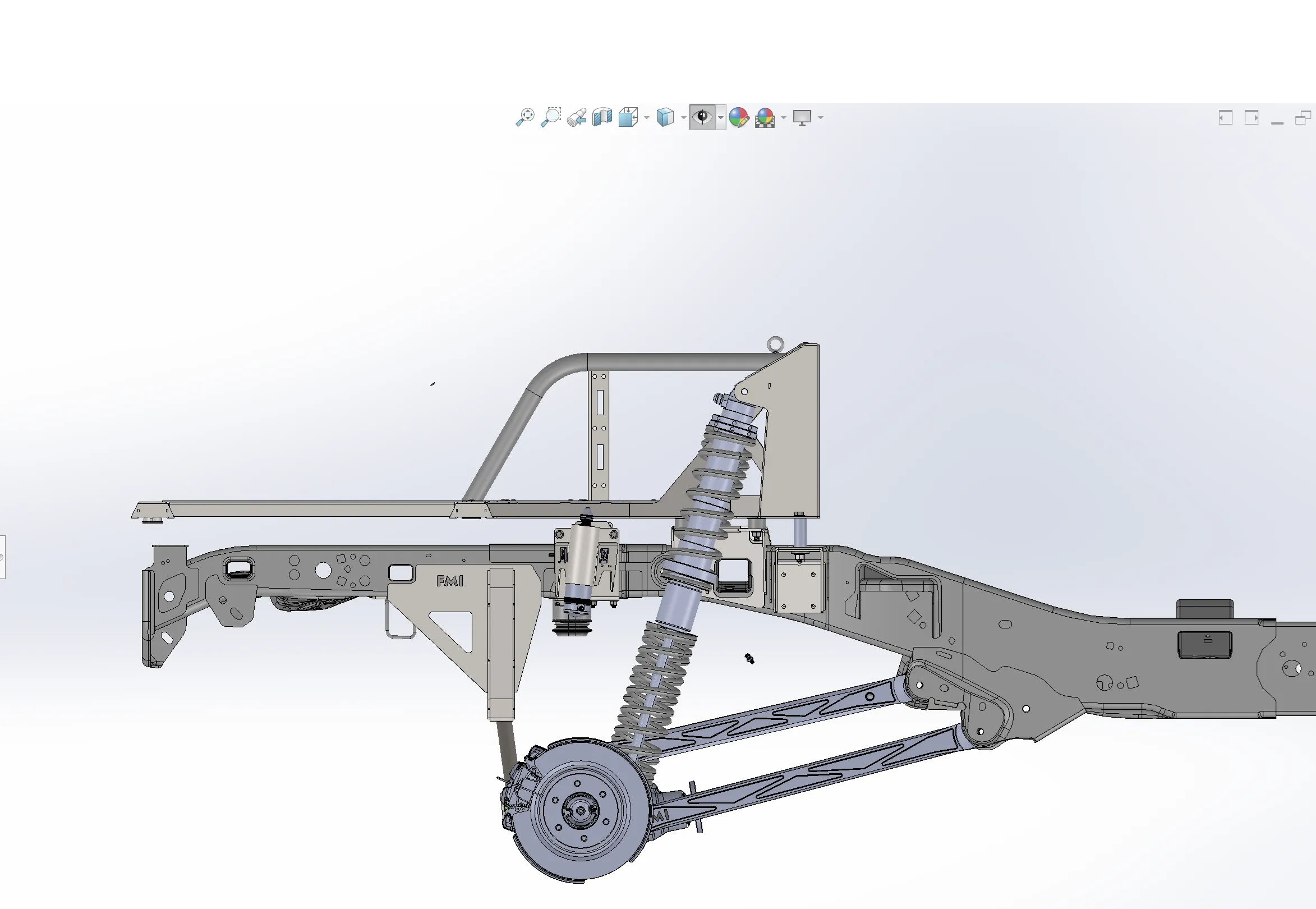

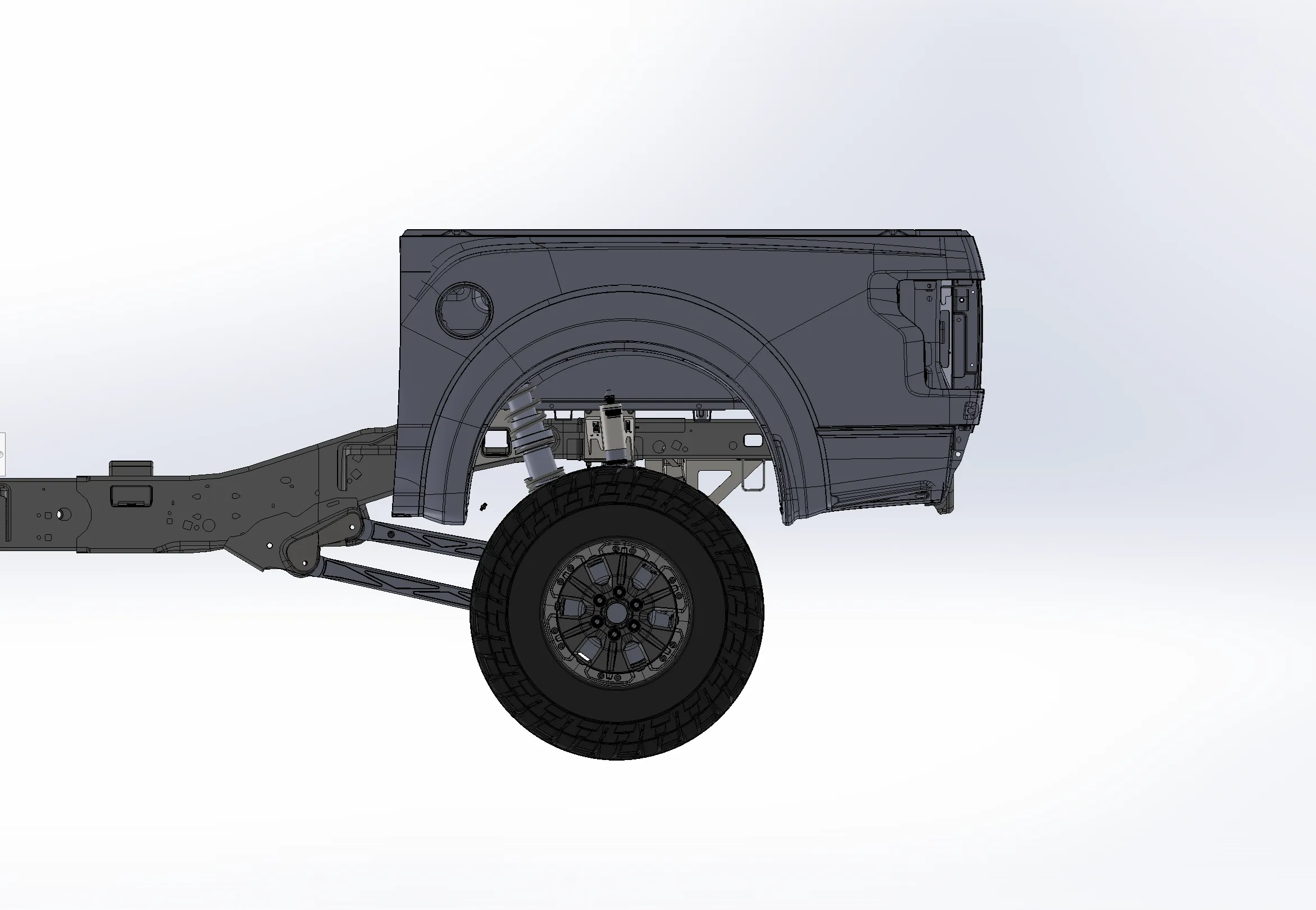

The ultimate rear suspension upgrade for your Gen 2 Ford Raptor is our all new long travel 5- link rear coil over conversion suspension kit.  This 5 link suspension kit replaces the leaf spring setup with Gen 3 5-link configuration rear suspension and a 3.0x16" travel coil over shock.  The upper and lower trailing arms and Panhard bar are built with race quality Billet Aluminum parts and the frame mounts locate the Panhard bar and rear links in the stock location from the Gen 3 Raptor.   All of the moving parts are built using the highest quality material and using high quality Ultra-Flex joints to provide the ultimate in strength and stability.  Getting rid of the rubber bushings that mount the stock parts with the more rigid Ultra-Flex joints makes the truck feel more predictable and limits flex which turns into wheel hop.

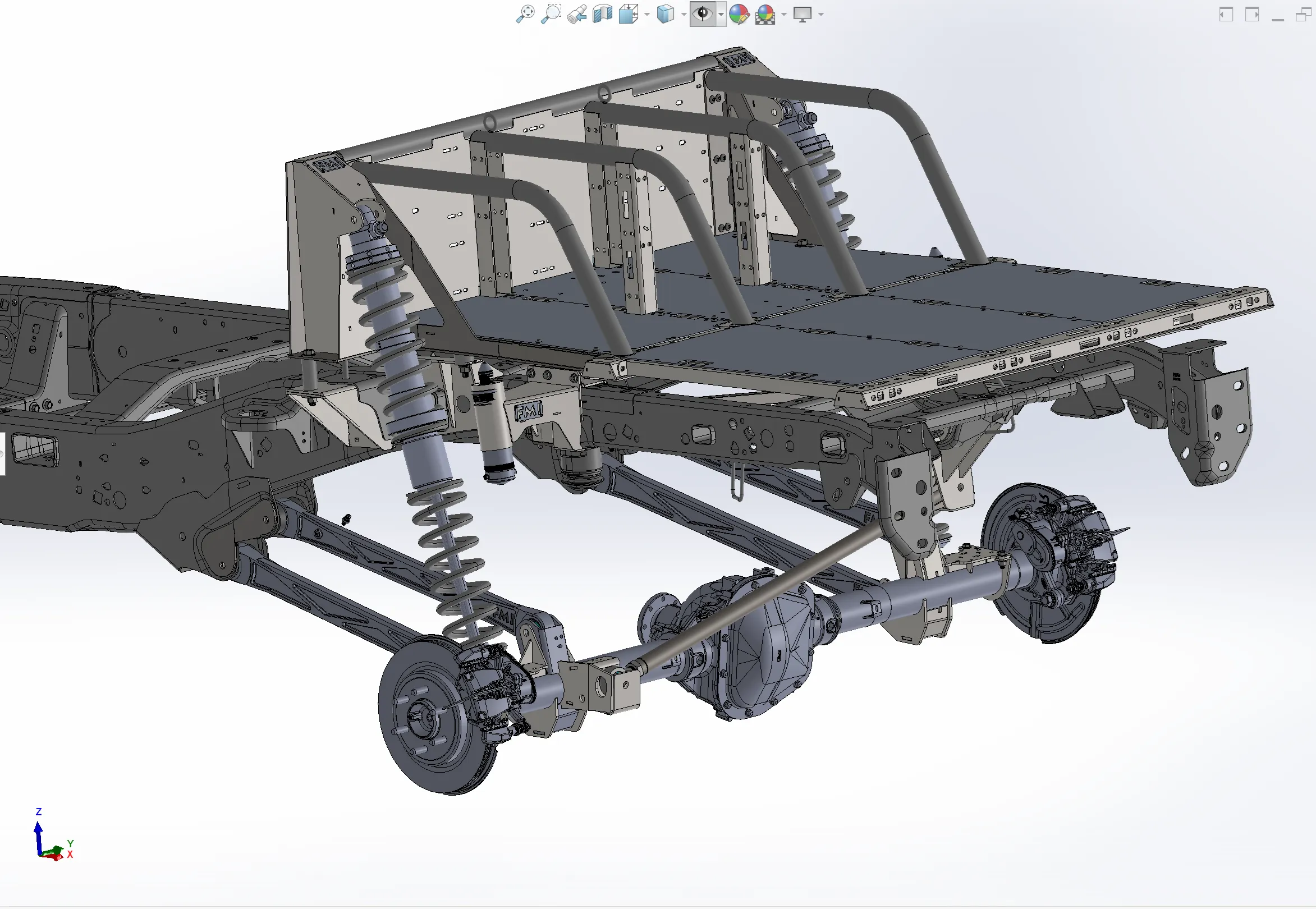

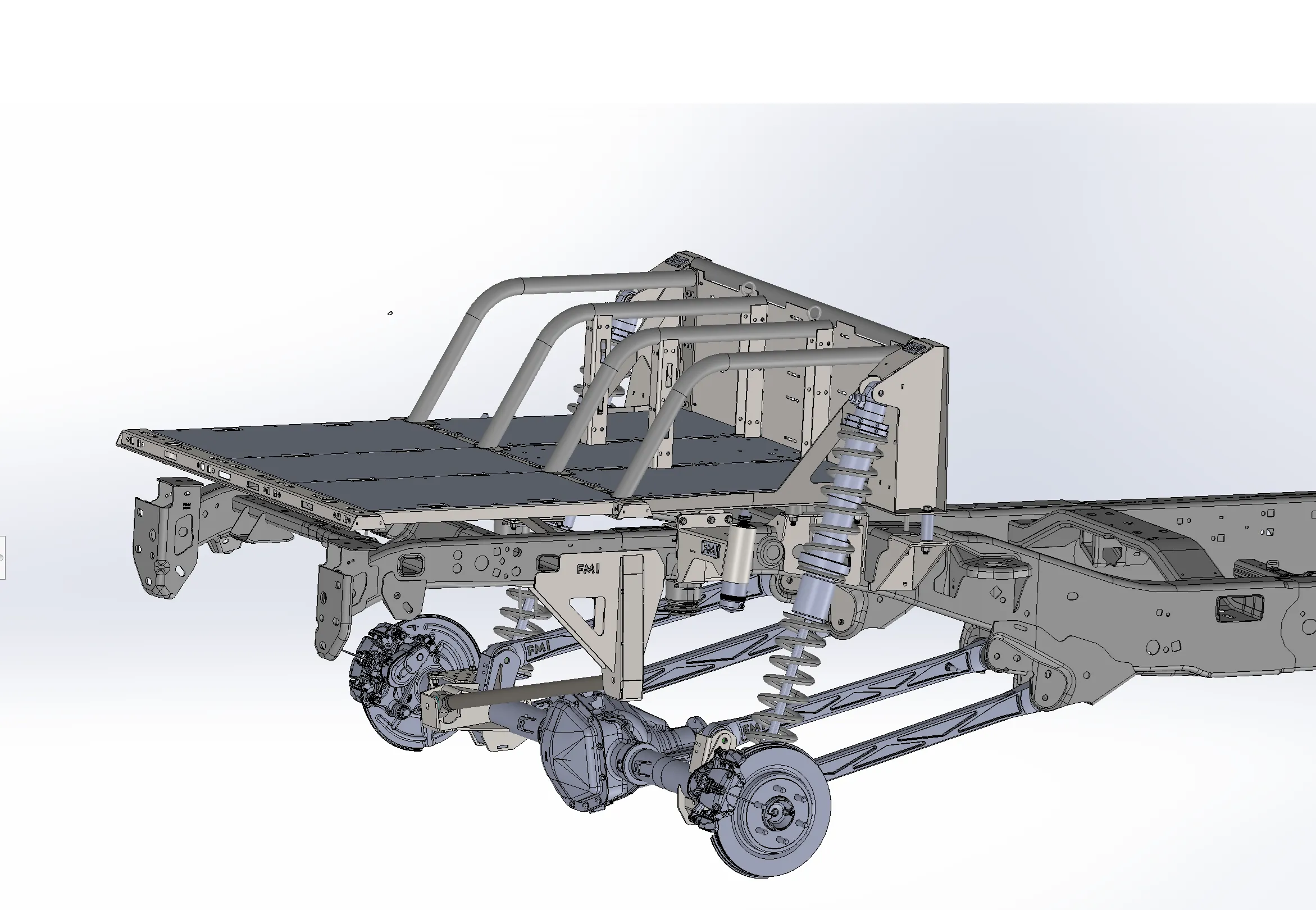

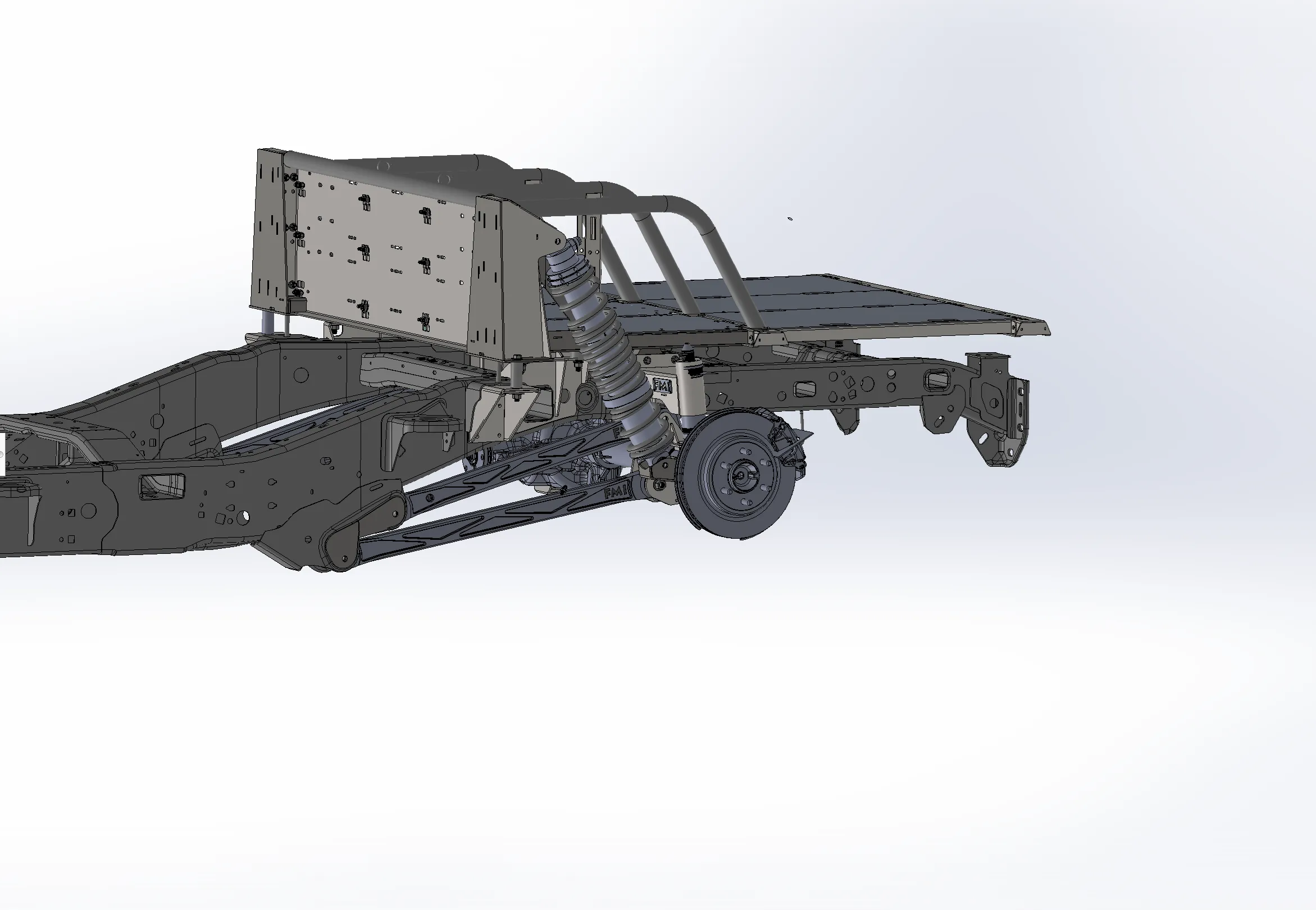

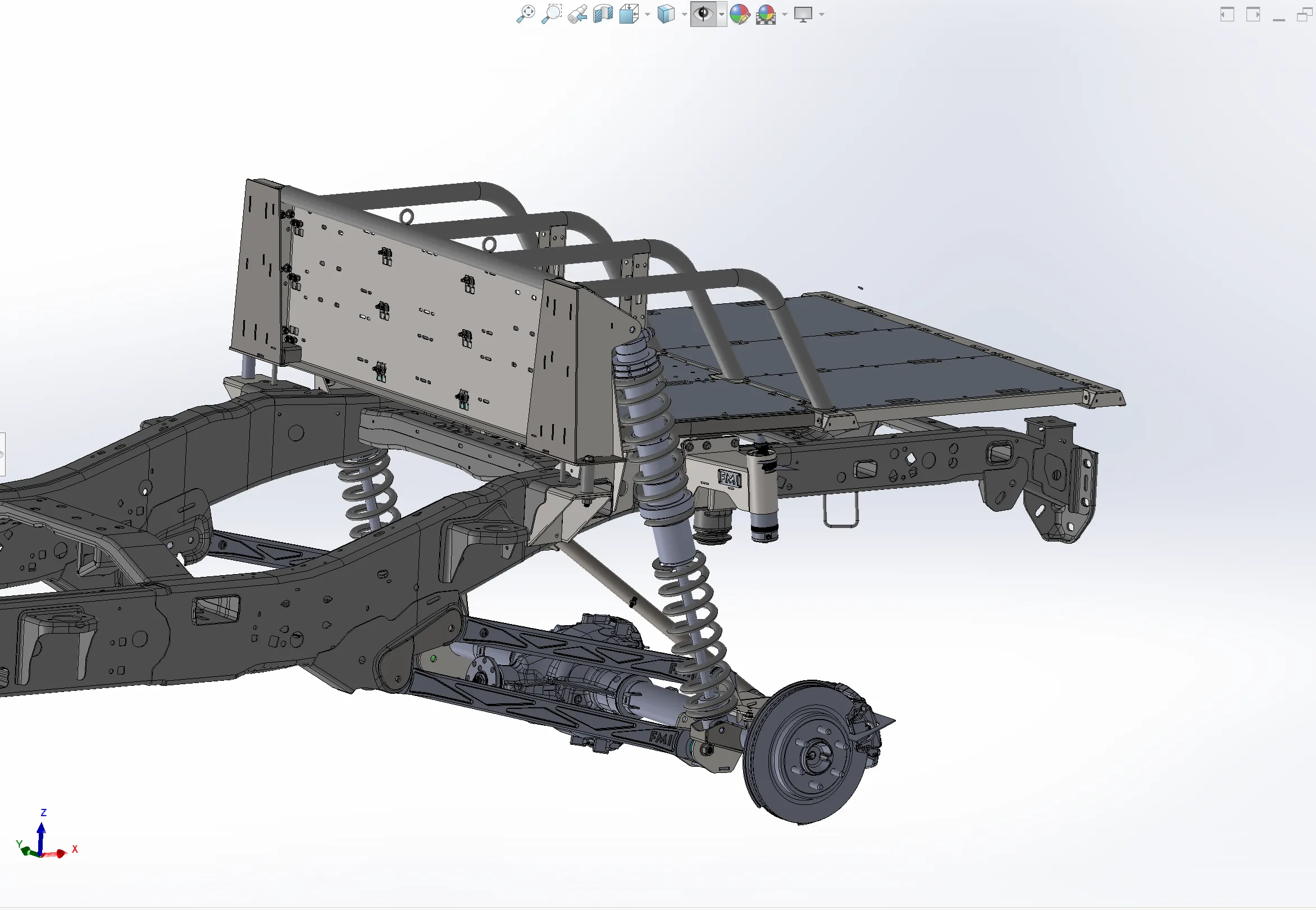

This kit keeps the stock fuel tank and uses one of our Bed Cage kits to mount the 3.0x16" travel coil over shock thru the floor of the bed to optimize the wheel travel and control.  The best overall kit provides great functional wheel travel and lets you keep your truck looking pretty stock..

We also recommend installing our bump stop kit to the rear to help handle the big bumps and control the last few inches of the wheel travel.  Bump stop kit for the gen 1 will work with our long travel kit.

*** Only the best parts used in this kit:

• Ultra-Flex joints for all pivot locations
• 17-4 Stainless Steel spacers
• Urethane wobble stoppers

• Grade 8 hardware

This kit includes:

1 FMI Bed Cage with shock mount towers - base kit included (fuel jug carriers and quick release jack kit etc are add on options)
2 lower FMI Billet Aluminum FMI Upper arms with Ultra-Flex joints
2 upper FMI Billet Aluminum Lower arms with Ultra-Flex joints
1 FMI Billet Aluminum Stock Length  Panhard bar with Ultra-Flex joints
1 Fabricated Panhard bar mount kit.
2 Fabricated frame mount plate kits for the upper and lower arms
1 rear axle plate kit for all of the mounts that are required to be welded to the rear axle.
1 set of limit straps and mount tabs for rear
1 set of 22" long stainless steel braided brake lines
1 kit with hardware and spacers needed for install

Add On items available also:

Bump stop kit
Quick Release Jack Mount
Dual Fuel Jug Tray


****  Coil springs not included with the kit and must be purchased separately

***** we sell this kit with a no shock option so you may purchase the coil over shock separately if you wish.  It uses a standard 3.0 x 16" travel Fox coil over shock.  You can use the standard race shock version or the internal bypass version.
