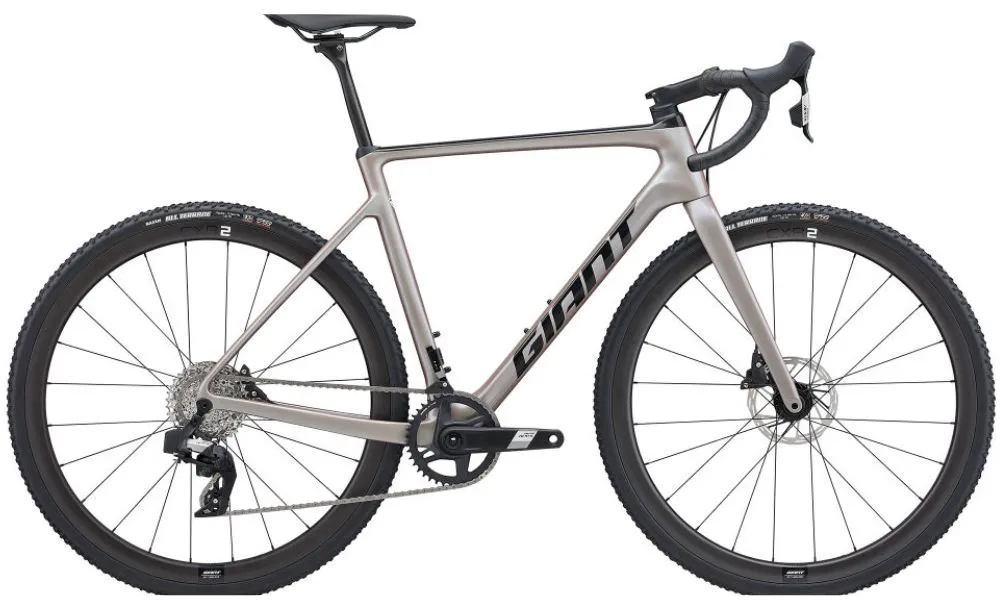

Giant 2024 TCX Advanced Pro 1
PROVEN THROUGH COUNTLESS PRO WINS, THIS LIGHTWEIGHT COMPOSITE CYCLOCROSS BIKE DELIVERS QUICK ACCELERATION, SMOOTH HANDLING AND TOTAL CONTROL ON DRY PAVEMENT, LOOSE DIRT, DEEP SAND OR SLICK MUD—EVERYTHING YOU NEED TO AIM FOR THE PODIUM.
Elite level efficiency
Advanced-grade composite frameset is 17.5 percent lighter than the previous generation while retaining its best-in-class torsional/pedaling stiffness.
Total control
Integrated disc brake technology with flat mounts and thru-axle hubs, combined with tubeless ready Giant WheelSystem, delivers added control in variable conditions and all types of weather.
Smooth ride quality
D-Fuse composite seatpost helps absorb bumps and vibrations, and you also have the option to switch to a standard 30.9mm round or dropper post depending on your riding style and terrain.
Specifications
Giant 2024 TXC Advanced Pro 1
Frame
Colour: Shell WhiteFrame: Advanced-Grade Composite, 12mm thru-axle, disc
Fork: Advanced-Grade Composite, full-composite OverDrive 2 steerer, disc
Shock: NA
Drivetrain
Crankset: SRAM Apex D1 DUB, 40t S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mmPedals:
Chain: SRAM Apex D1
Bottom Bracket: SRAM DUB, press fit
Rear Derailleur: SRAM Apex eTap AXS
Front Derailleur: NA
Derailleur Shifter: SRAM Apex eTap AXS, 1x12
Freewheel/Cassette: SRAM Apex XPLR, 12-speed, 11x34
Wheels
Tyres: [F] and [R] Maxxis All-Terrene, 700x33c, tubelessWheels/Rims: Giant CXR 2 Carbon Disc WheelSystem
Hubs: [F] Giant alloy, CenterLock, 12mm thru-axle [R] Giant alloy, 3-pawl driver, CenterLock, 12mm thru-axle
Braking System
Brakes: SRAM Apex eTap AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]140mmBrake Levers: SRAM Apex eTap AXS hydraulic
Other
Handlebar: Giant Contact SL S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cmStem: Giant Contact SL S:80mm, M:90mm, M/L:100mm, L:100mm, XL:110mm
Saddle: Giant Approach SL
Seat Post: Giant D-Fuse SLR, composite, -5/ 15mm offset
Goemetry
Giant 2024 TCX Advanced Pro 1
-
- XS
- 158 cm 168 cm
-
- S
- 166 cm 174 cm
-
- M
- 172 cm 180 cm
-
- ML
- 178 cm 186 cm
-
- L
- 184 cm 192 cm
-
- XL
- 190 cm 198 cm
| XS | S | M | ML | L | XL | ||
| A | SEAT TUBE LENGTH (mm) | 490 | 505 | 525 | 545 | 555 | 565 |
| B | SEAT TUBE ANGLE | 74.0° | 73.5° | 73.0° | 73.0° | 73.0° | 73.0° |
| C | TOP TUBE LENGTH (mm) | 515 | 530 | 545 | 560 | 575 | 590 |
| D | HEAD TUBE LENGTH (mm) | 118 | 133 | 148 | 163 | 178 | 193 |
| E | HEAD TUBE ANGLE | 70.7° | 71.0° | 71.5° | 72.0° | 72.5° | 72.5° |
| F | FORK RAKE (mm) | 50 | 50 | 50 | 50 | 50 | 50 |
| G | TRAIL (mm) | 70.3 | 68.3 | 65.1 | 61.8 | 58.6 | 58.6 |
| H | WHEELBASE (mm) | 1006 | 1014 | 1020 | 1030 | 1040 | 1055 |
| I | CHAIN STAY LENGTH (mm) | 430 | 430 | 430 | 430 | 430 | 430 |
| J | BOTTOM BRACKET DROP (mm) | 60 | 60 | 60 | 60 | 60 | 60 |
| K | STACK (mm) | 525 | 540 | 556 | 572 | 589 | 603 |
| L | REACH (mm) | 365 | 370 | 375 | 385 | 395 | 406 |
| M | STAND OVER HEIGHT (mm) | 775 | 788 | 807 | 826 | 832 | 845 |
| N | HANDLEBAR WIDTH (mm) | 400 | 400 | 420 | 420 | 440 | 440 |
| O | STEM LENGTH (mm) | 70 | 80 | 90 | 100 | 100 | 110 |
| P | CRANK LENGTH (mm) | 170 | 170 | 172 | 172 | 175 | 175 |
| Q | WHEEL SIZE | 700C | 700C | 700C | 700C | 700C | 700C |
