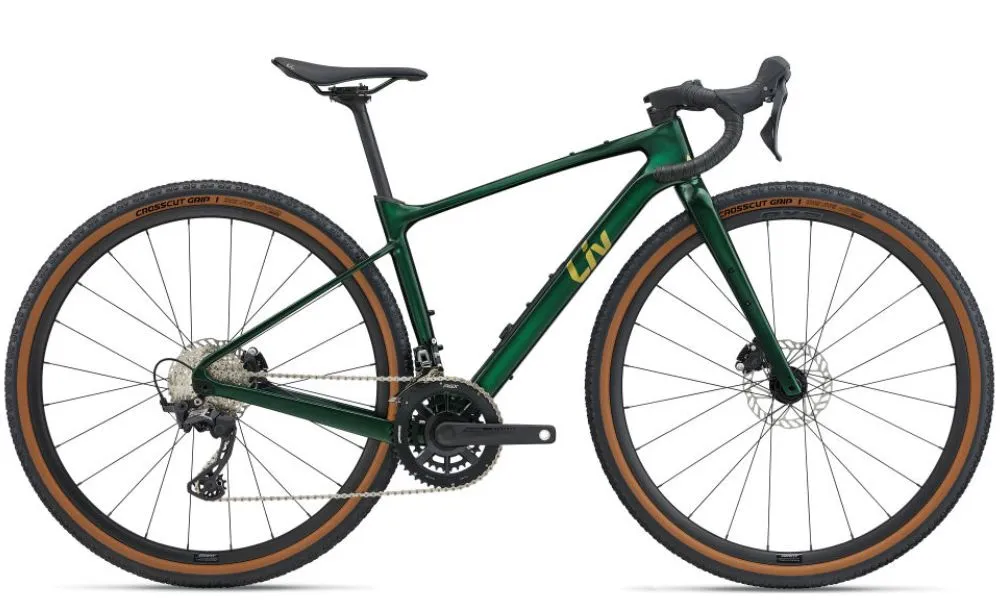

Liv 2025 Devote Advanced 2
Specifications
Liv 2025 Devote Advanced 2
Frame
Colour: Kelp Forest
Frame: Advanced-Grade Composite, 12x142mm thru-axle, flat mount disc
Fork: Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Shock: NA
Drivetrain
Crankset: FSA Omega Modular AGX , 32/48 XS:165mm, S:170mm, M:172.5mm, L:172.5mm
Pedals: NA
Chain: KMC X12L-1
Bottom Bracket: FSA Mega EXA
Rear Derailleur: Shimano GRX RX-820
Front Derailleur: Shimano GRX RX-820
Derailleur Shifter: Shimano GRX RX-610, 2x12
Freewheel/Cassette: Shimano HG710, 12-speed, 11x36
Braking System
Brakes: Shimano GRX RX-410 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers: Shimano GRX RX-610 hydraulic
Wheels
Tyres: Giant CrossCut Grip (Tan) or Maxxis Rambler TR (Black), 700x40c, tubeless
Wheels/Rims: Giant P-X2 Disc wheelset, alloy
Hubs: Giant alloy, 12mm thru-axle
Other
Handlebar: Giant Contact XR D-Fuse, 31.8mm XS:40cm, S:40cm, M:42cm, L:42cm
Stem: Giant Contact Aerolight XS:50mm, S:60mm, M:70mm, L:80mm
Saddle: Liv Approach
Seat Post: Giant D-Fuse, composite
Geometry
Liv 2025 Devote Advanced 2
-
- XS
- 150 cm 163 cm
-
- S
- 158 cm 169 cm
-
- M
- 164 cm 175 cm
-
- L
- 170 cm 181 cm
| XS | S | M | L | ||
| A | Seat Tube Length (MM) | 390 | 420 | 465 | 500 |
| B | Seat Tube Angle | 74.5° | 74.5° | 74.5° | 74.5° |
| C | Top Tube Length (MM) | 525 | 535 | 545 | 555 |
| D | Head Tube Length (MM) | 90 | 110 | 140 | 160 |
| E | Head Tube Angle | 70.0° | 70.5° | 71.0° | 71.0° |
| F | Fork Rake (MM) | 50 | 50 | 50 | 50 |
| G | Trail (MM) | 78.4 | 75.0 | 71.6 | 71.6 |
| H | Wheelbase (MM) | 1012 | 1019 | 1026 | 1043 |
| I | Chain Stay Length (MM) | 425 | 425 | 425 | 430 |
| J | Bottom Bracket Drop (MM) | 80 | 80 | 80 | 80 |
| K | Stack (MM) | 523 | 544 | 574 | 593 |
| L | Reach (MM) | 380 | 384 | 386 | 391 |
| M | Stand Over Height (MM) | 681 | 708 | 748 | 779 |
| O | Stem Length (MM) | 50 | 60 | 70 | 80 |
| P | Crank Length (MM) | 165 | 170 | 172 | 172 |
| Q | Wheel Size | 700 | 700 | 700 | 700 |
