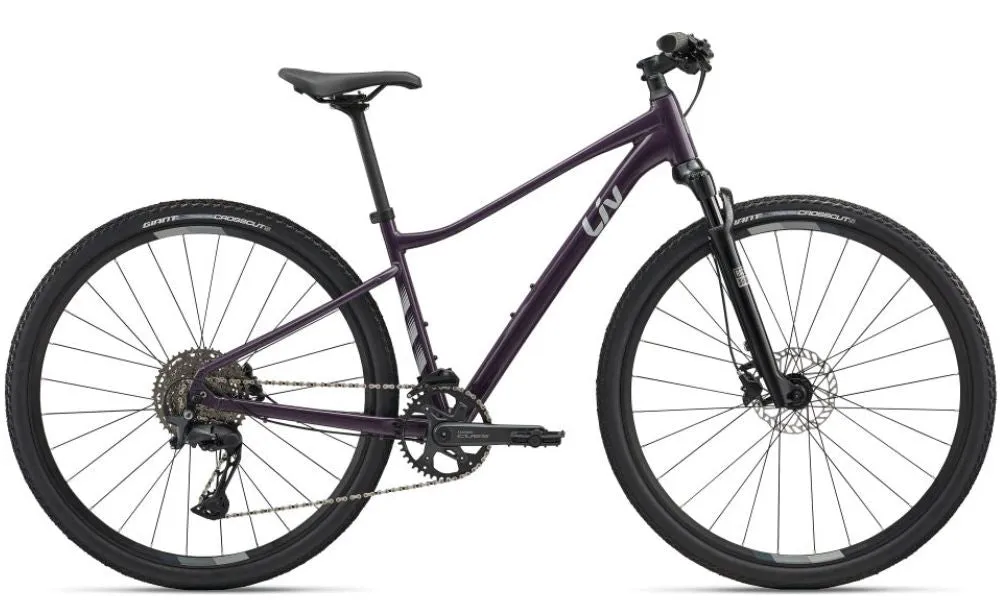

Liv 2025 Rove 1
Please contact store for availability 04 589 2822 or
Specifications
Liv 2025 Rove 1
Frame
Colour: Tyrian Purple
Frame: ALUXX-Grade aluminium, disc
Fork: RockShox Paragon Gold RL QR, Solo Air, 50mm
Shock: NA
Drivetrain
Crankset: Shimano U6000-1, 42t S:170mm, M:170mm, L:170mm, XL:170mm
Pedals: NA
Chain: KMC X11
Bottom Bracket: Threaded
Rear Derailleur: Shimano Cues U6020
Front Derailleur: NA
Derailleur Shifter: Shimano Cues U6000, 1x11
Freewheel/Cassette: Shimano CS-LG40011, 11x45
Wheels
Tyres: Giant CrossCut, anti-puncture, 700x42c
Wheels/Rims: Giant double wall aluminium
Hubs: Alloy, 28h
Braking System
Brakes: Shimano BL-MT200 hydraulic, [F]160mm, [R]160mm rotors
Brake Levers: Shimano BL-MT201
Other
Handlebar: Giant Sport XC, 31.8mm
Stem: Giant Sport, 8-degree S:70mm, M:80mm, L:90mm, XL:100mm
Saddle: Giant ErgoContact Sport
Seat Post: Giant D-Fuse, composite
Geometry
Liv 2025 Rove 1
-
- XS
- 148 cm 163 cm
-
- S
- 158 cm 169 cm
-
- M
- 164 cm 175 cm
-
- L
- 170 cm 183 cm
| XS | S | M | L | ||
| A | SEAT TUBE LENGTH (mm) | 380 | 420 | 460 | 500 |
| B | SEAT TUBE ANGLE | 74.0° | 73.5° | 73.0° | 73.0° |
| C | TOP TUBE LENGTH (mm) | 550 | 570 | 590 | 610 |
| D | HEAD TUBE LENGTH (mm) | 110 | 120 | 135 | 150 |
| E | HEAD TUBE ANGLE | 70.5° | 70.5° | 70.5° | 70.5° |
| F | FORK RAKE (mm) | 42 | 42 | 42 | 42 |
| G | TRAIL (mm) | 85.1 | 85.1 | 85.1 | 85.1 |
| H | WHEELBASE (mm) | 1059 | 1074 | 1089 | 1109 |
| I | CHAIN STAY LENGTH (mm) | 450 | 450 | 450 | 450 |
| J | BOTTOM BRACKET DROP (mm) | 62 | 62 | 62 | 62 |
| K | STACK (mm) | 601 | 611 | 625 | 639 |
| L | REACH (mm) | 378 | 389 | 399 | 415 |
| M | STAND OVER HEIGHT (mm) | 589 | 606 | 619 | 629 |
| O | STEM LENGTH (mm) | 70 | 80 | 80 | 90 |
| P | CRANK LENGTH (mm) | 165 | 170 | 170 | 175 |
| Q | WHEEL SIZE | 700C | 700C | 700C | 700C |
