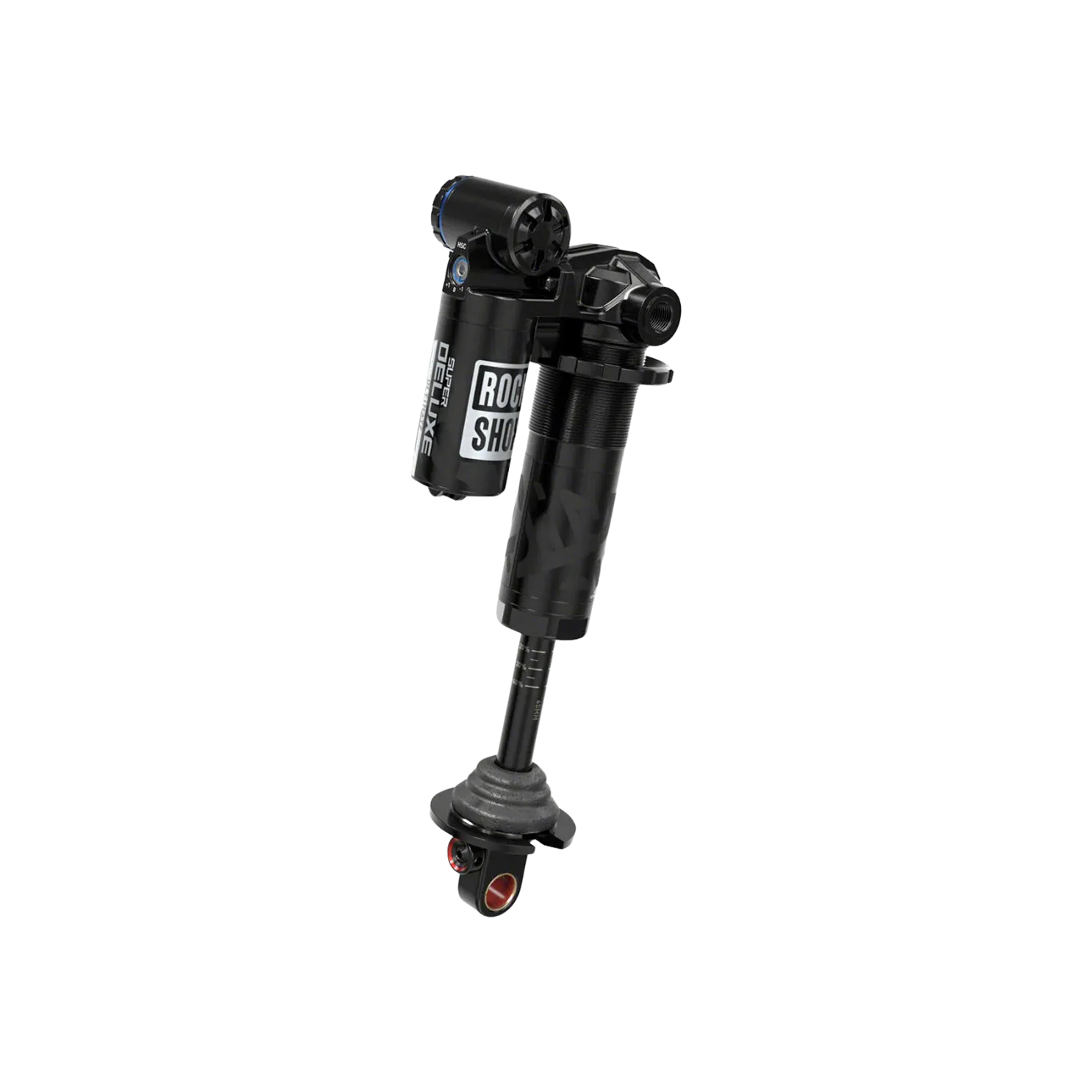

The ground up, all-new Super Deluxe Ultimate DH Coil is a work of art with no feature spared. Equipped with an entirely new chassis, 100% independent High Speed and Low Speed Compression adjustment, increased bushing overlap for improved small bump performance, and adjustable Hydraulic Bottom Out resistance to tailor that bottomless feel. It’s the unmistakable feel of coil, evolved. A coil shock packed full of premium technology, designed to lock in lines and reach mach speed on the steeps. 

Features
RC2 Damper’s ultimate adjustability is tailored to the downhill trailblazer and offers completely independent High Speed and Low Speed Compression adjustments, eliminating “cross-talk” so you can tune your shock to exactly how you want it to perform
The optional Adjustable Hydraulic Bottom Out offers a convenient dial with five different compression settings to customize the cushioning you experience in the last 20% of travel when facing potential bottom out
Redesigned rough-ready chassis is 21% stronger and primed to get rowdy
Increased bushing overlap maximizes small bump performance and grip
20 clicks of Rebound adjustment offer wider range of tunability and accommodate more rider types
Separate and independent Open and Threshold pistons tuned exactly for your ride
External adjustments allow for no-fuss tuning on the fly
Fresh signature graphics package to flash on the podium or as you blaze past your buddies on the doubletrack
Maxima plush damping fluid reduces friction and silences damper noise

Specifications
Default Settings: Linear Reb/Low Comp, Adj Hydraulic Bottom Out
Spring Adjustments: Preload
Spring: Coil, not included, sold separately
Damping Adjustments: Extl rebnd, Low & High speed comp, Hydraulic Bottom Out
Damper Type: RC2
E-bike Approved

Mfr Claimed Weight
900g (230x65mm, with 350lb spring, standard/standard)
