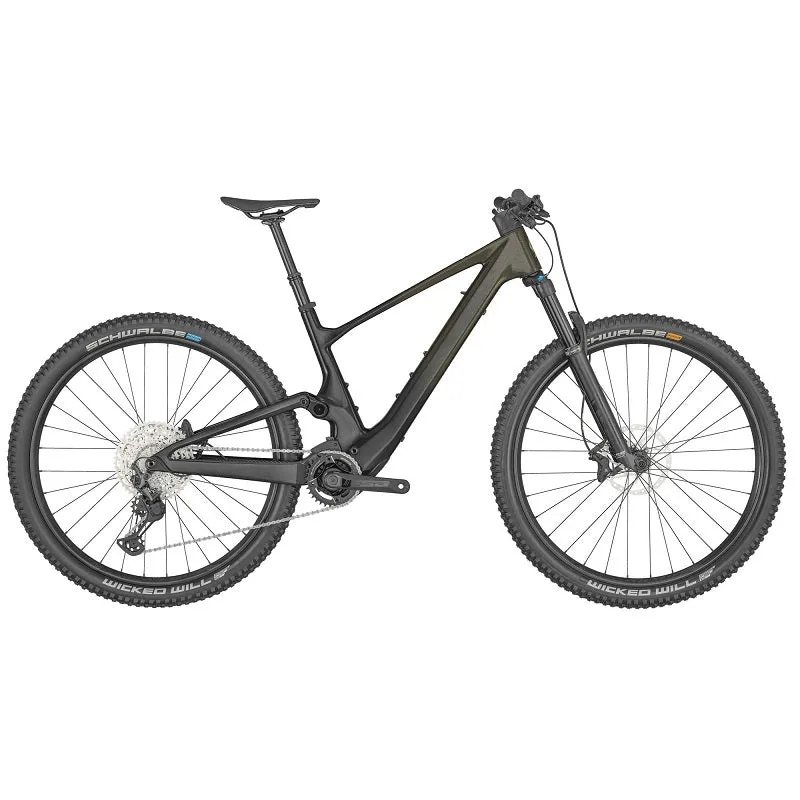

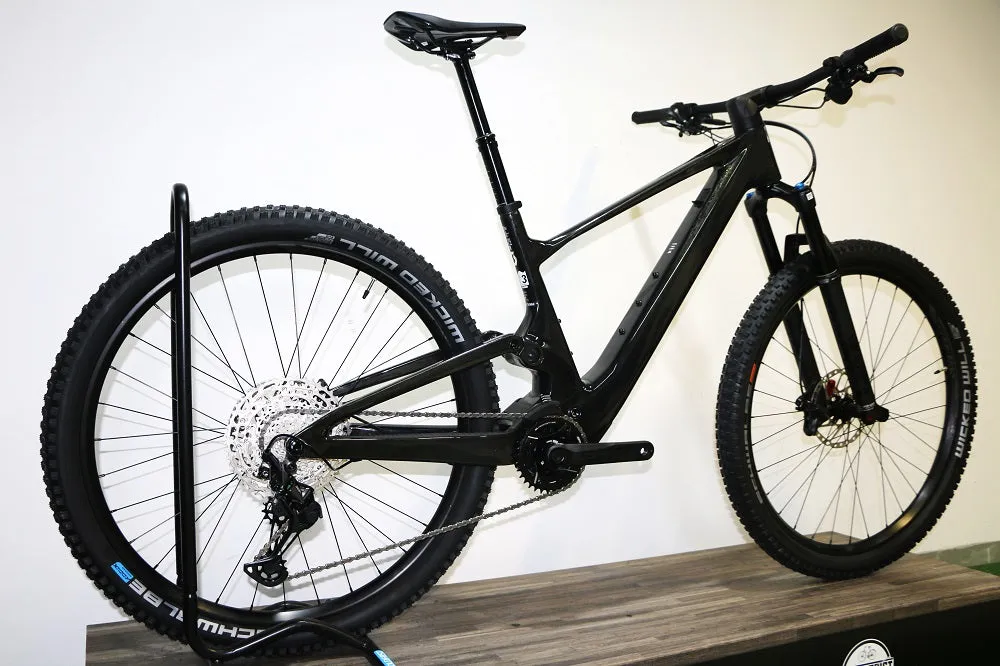

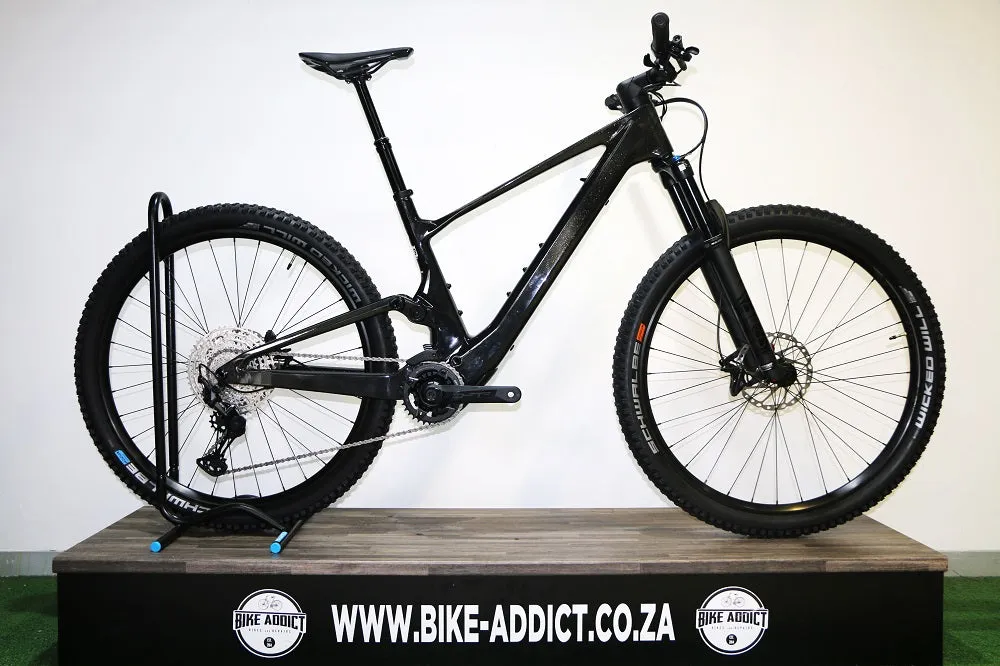

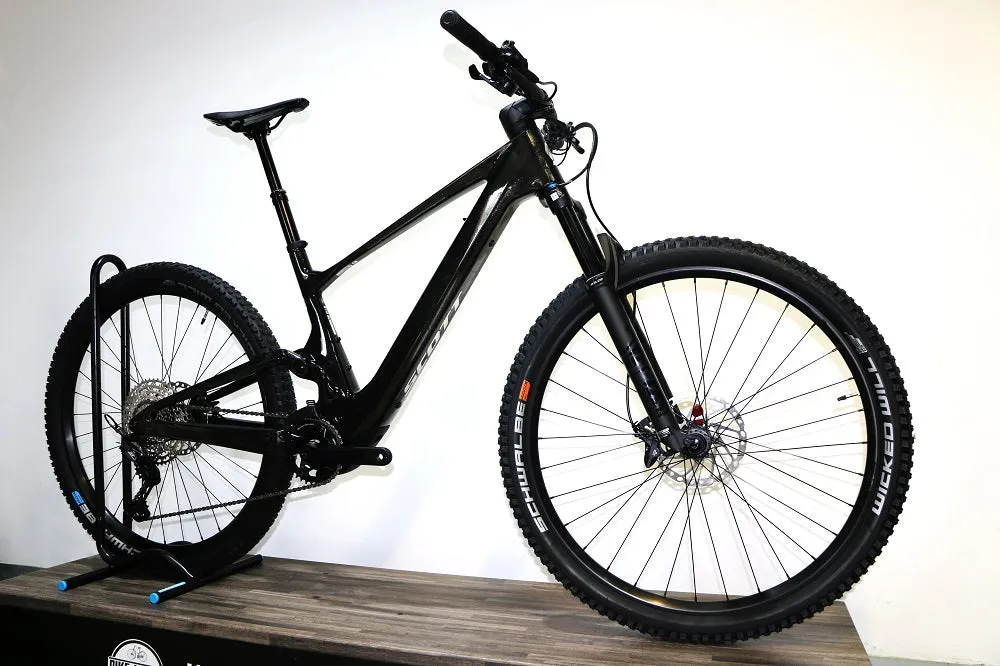

An E-MTB with the weight of an MTB, starting at 15.5kg! Take the best Cross-Country/Trail platform to date, the Spark 900, top it off with 130mm of travel, add a completely silent and powerful electric assistance, yet keep its legendary lightweight DNA, and you are ready to ride any trail at Nino’s speed.

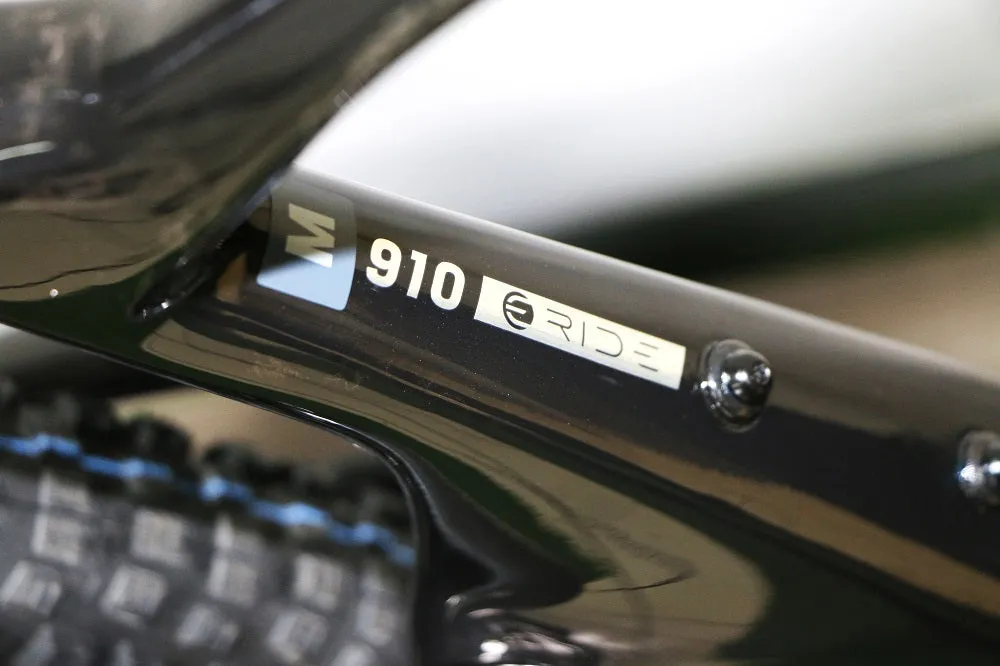

FRAME: Lumen eRIDE Carbon HMX
Integrated Suspension Technology
Flex Pivot / Adjustable head angle
Syncros Cable Integration System
TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline
TRAVEL: Front: 130mm / Rear: 130mm

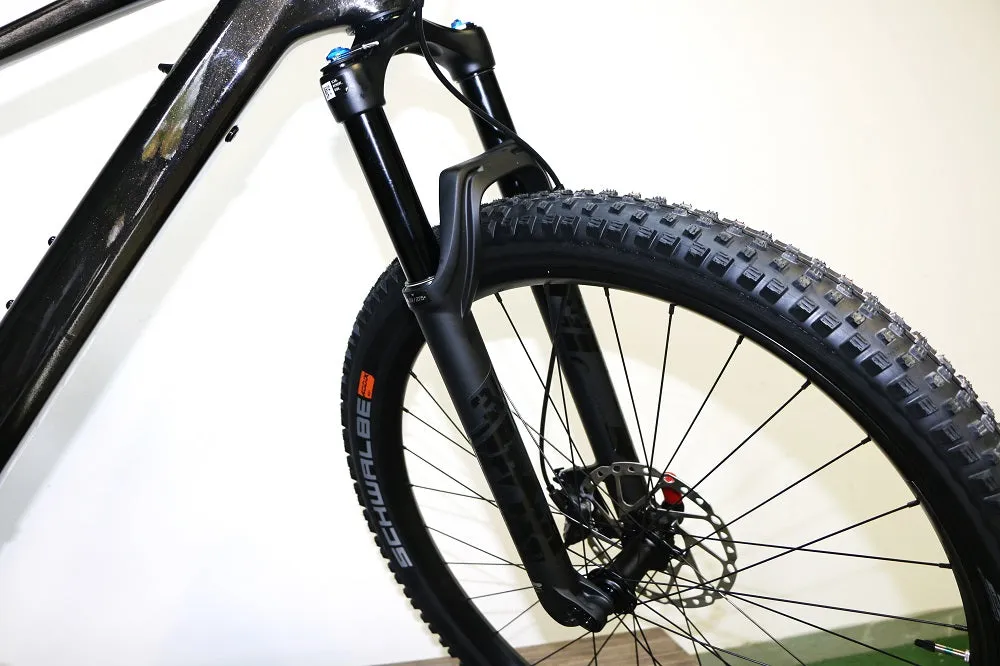

FORK: FOX 34 Float Rhythm Air Grip
3-Modes / Kabolt 15x110mm axle / tapered steerer
44mm offset / Reb. Adj. / Lockout / 130mm travel
REAR SHOCK: FOX NUDE 5T EVOL Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
Custom large Air volume / DPS / Reb. Adj.
Travel 130-90-Lockout / T165X45mm
REMOTE SYSTEM: SCOTT TwinLoc Suspension System
3 modes front and rear / integ. Grip clamp
DRIVE UNIT: TQ HPR50 Mid Motor drive 50Nm max Torque / 32kmh
BATTERY: TQ Internal 360Wh

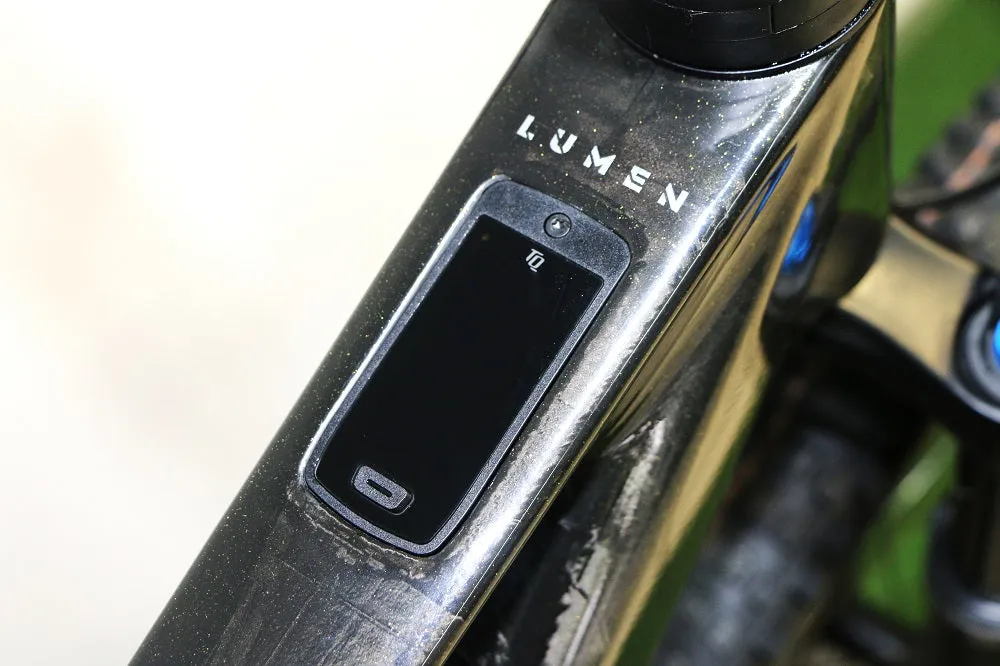

DISPLAY: TQ HPR
Bluetooth / ANT / Dedicated Smartphone app
CHARGER: TQ 100-240V-4A
REAR DERAILLEUR: Shimano XT RD-M8100 SGS
Shadow Plus / 12 Speed
SHIFTERS: Shimano Deore SL-M6100-IR / Rapidfire Plus
Ispec EV clamp

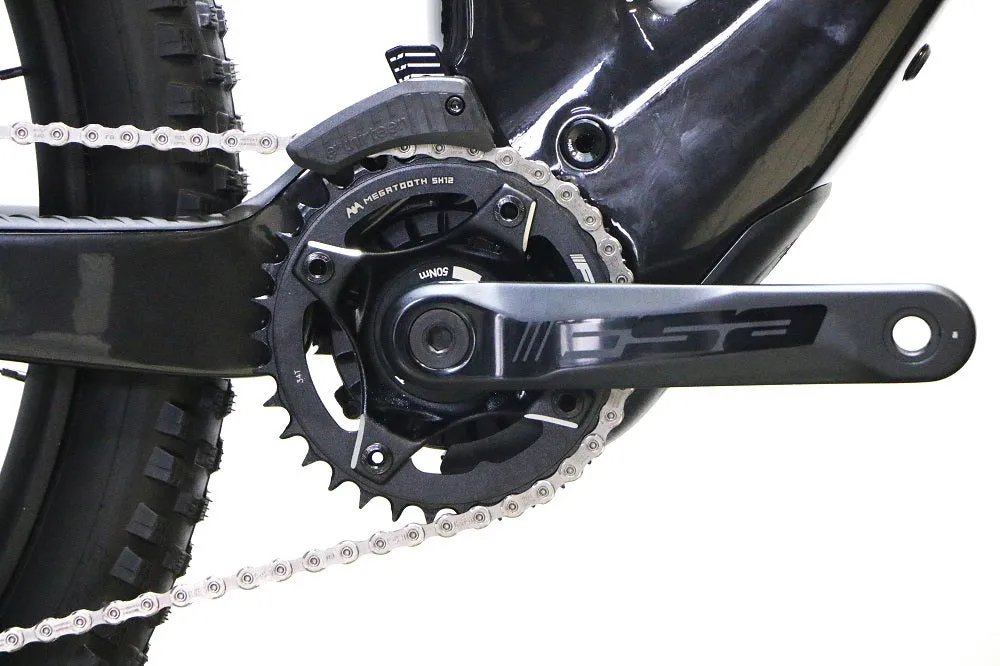

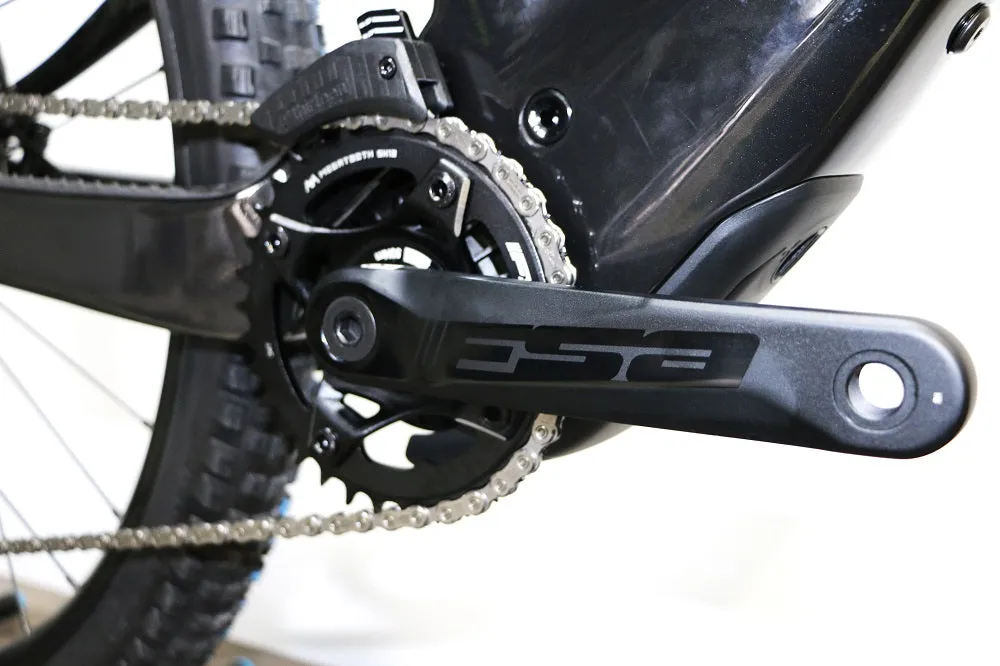

CRANKSET: FSA Alloy crankset / 175mm / 34T
CHAINGUIDE: e*thirteen / e*spec Slider
CHAINRING: Scott custom spider / FSA 12Speed 34T chainring
CHAIN: Shimano CN-M6100

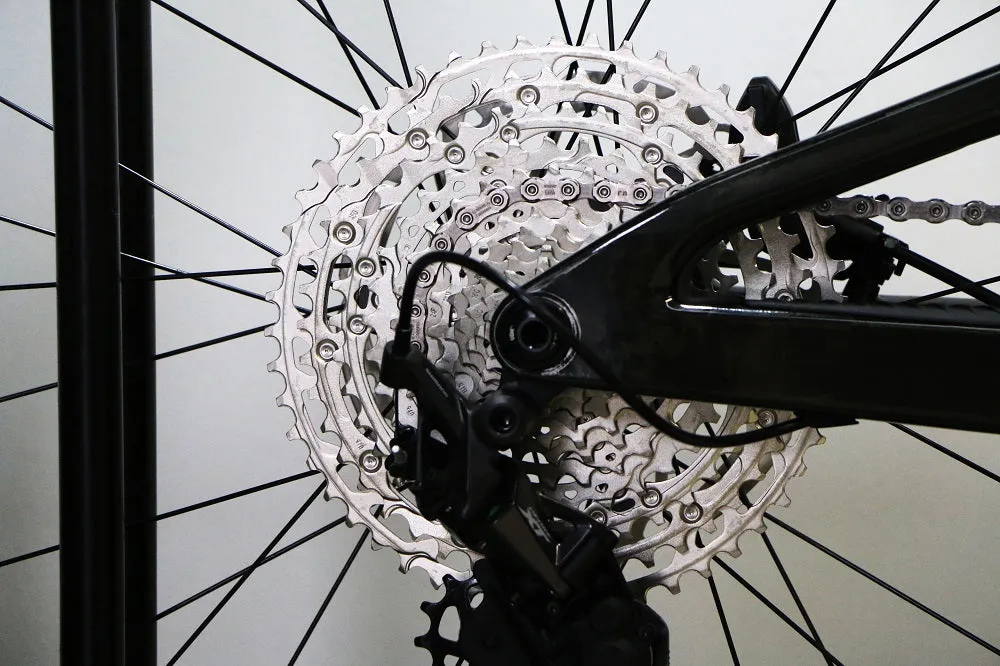

CASSETTE: Shimano CS-M6100 / 10-51 T

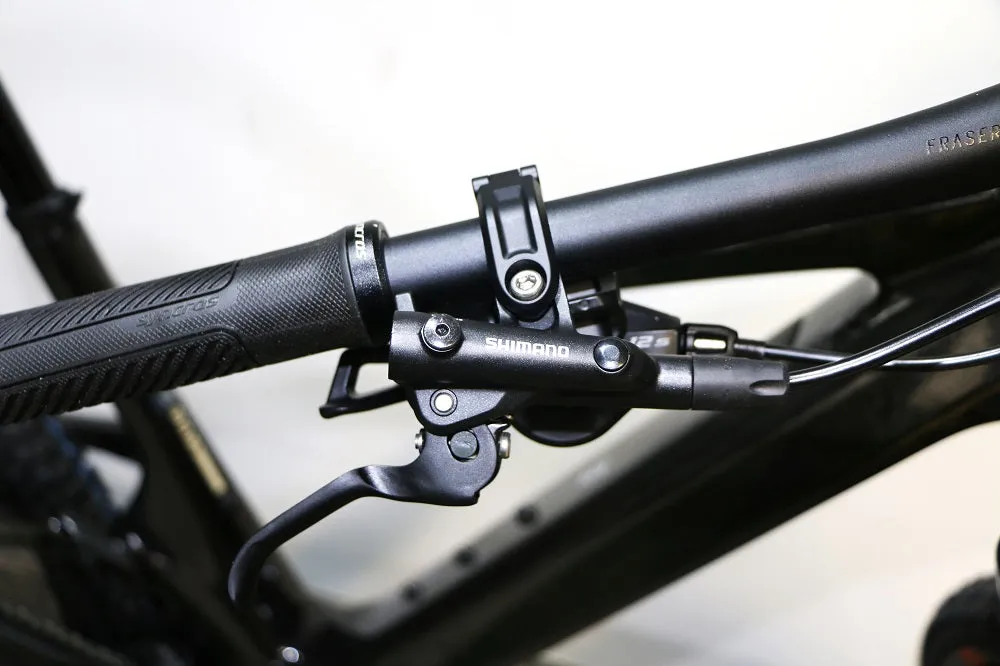

BRAKES: Shimano Deore M6120 4 Piston Disc
ROTOR: Front: SM-RT64 CL 180mm / Rear: RT-EM600 CL 180mm

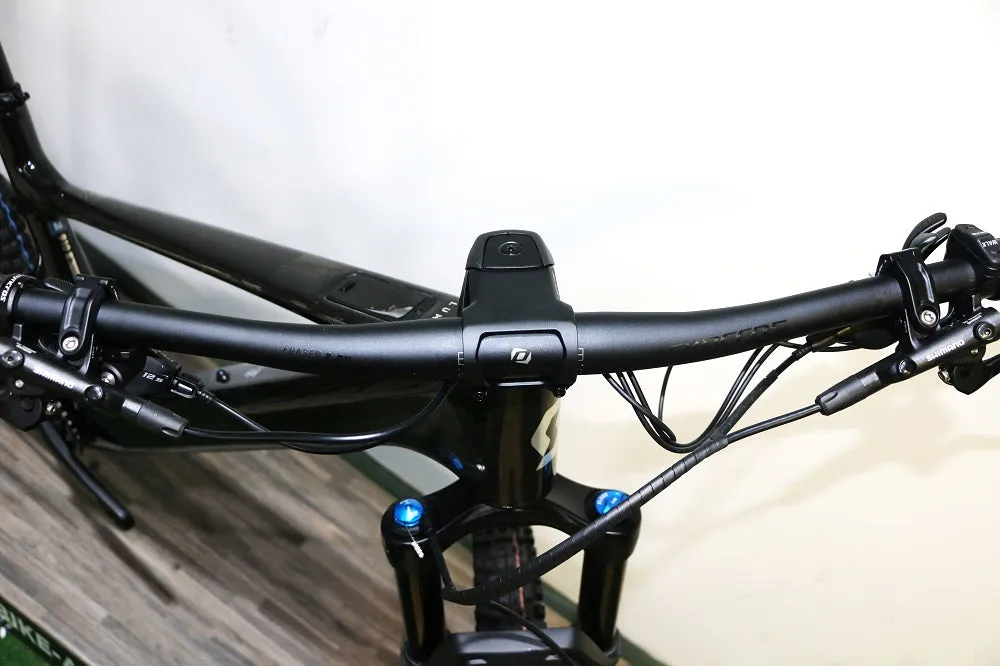

HANDLEBAR: Syncros Fraser 2.0 DC Alloy 6061 D.B.
mini Rise / back sweep 8° / 760mm
Syncros Performance XC lock-on grips
H'STEM: Syncros DC 2.0
Syncros Cable Integration System
0° rise / 6061 Alloy / 31.8mm / 1 1/8"
SEATPOST: Syncros Duncan Dropper Post 2.0
31.6mm / S & M size 125mm / L size 150mm / XL size 170mm

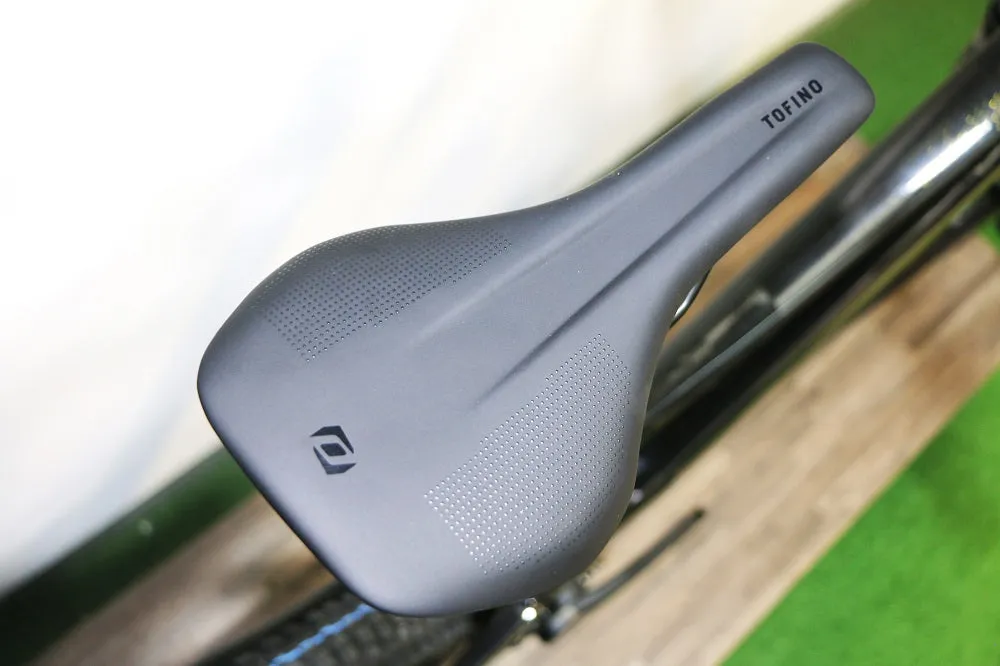

SEAT: Syncros Tofino 1.5 Regular, Titanium rails
HEADSET: Syncros - Acros Angle adjust & Cable Routing HS System
-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB
HUB (FRONT): Formula CL-811 / 15x110mm
HUB (REAR): Formula CL-148M / 12x148mm / Micro Spline
Syncros Axle w/Removable Lever
with 6mm Allen, T30 and T25 Tools
SPOKES: Stainless Black 15G / 1.8mm
RIMS: Syncros X-30SE / 32H / 30mm
Tubeless ready
FRONT TIRE: Schwalbe Wicked Will 29x2.4" EVO
Super Race / TLE / 67EPI / Addix Speed Soft
REAR TIRE: Schwalbe Wicked Will 29x2.4" EVO
Super Race / TLE / 67EPI / Addix Speed Grip
APPROX WEIGHTS IN KG: 17.6 (Tubeless setup)
APPROX WEIGHTS IN LBS: 38.8 (Tubeless setup)
